Acoustical Soundproofing Ceiling Tile

ThunderTile - T-Bar Acoustic Panels

ThunderTile is a unique acoustic T-bar ceiling tile that combines the remarkable absorption characteristics of high density glass wool with the sound-blocking attributes of gypsum board. Once installed, ThunderTiles provide effective control of the reverberant field while eliminating bothersome primary reflections that make communication difficult.

T-Bar Acoustic Panels

  • Dual function composite T-Bar ceiling tile
  • Combines absorptive glass wool with gypsum board
  • Improves intelligibility by reducing room echo
  • Stops sound from entering or exiting room
  • Absolute white finish for optimum reflectivity

Specifications

ThunderTiles combine high density 6lb glass wool with ½” gypsum board. The visible face features a decorative tissue with a painted latex finish. The acoustic tile is fully encapsulated in micromesh and edges are sealed to eliminate dusting during handling.

Designed to fit in standard T-bar ceilings. ThunderTile sizes are 24” x 24” (60cm x 60cm) and 24” x 48” (60cm x 121cm). Each size is available in a choice of flush-mount (trim edges) or drop-down (reveal edges) designs.

Superior acoustic performance coupled with exceptional sound blocking make the ThunderTile an ideal choice for controlling noise between offices, class rooms and entertainment areas and for controlling excessive ambiance which can affect speech intelligibility.

ThunderTiles have been independently tested for fire and smoke development to meet the rigorous ASTM E84 for use in the United States and CAN-UL S102 for use in Canada.

Material High-density glass wool (6 lbs/pcf)
Facing Fiberglass tissue painted with water based latex paint
Color Absolute white paintable finish
Installation Exposed T-Bar grid, ¾” (15 ~ 24mm)
NRC 0.95
CAC 46
Fire-Resitant Class-1/A: ASTM E84, CANULS102 (US and Canada) Non-combustible according to GB9624-1997
Thermal-Resistant Greater than 0.5 (m2.k/w)
Humidity Stable with up to 95% RH @ 120ºF (40°C)
Stability at 95% RH No sagging, warping or delaminating
Moisture Rate Less than 1% (JC/T670-2005)
Enviromental Impact Tiles and packing are fully recyclable
Safety Limit of radionuclides in building materials specific activity of 226Ra: Ira <1.0 specific activity of 226Ra, 232Th, 40K: Ir <1.3

Product Options

ThunderTile 24x24 (60cmx60cm)

Thickness Edge Panels per Box Surface Area Coverage
1" (27mm) Trim 8 32 sq-ft (2.97 sq-meters)
1" (27mm) Reveal 8 32 sq-ft (2.97 sq-meters)

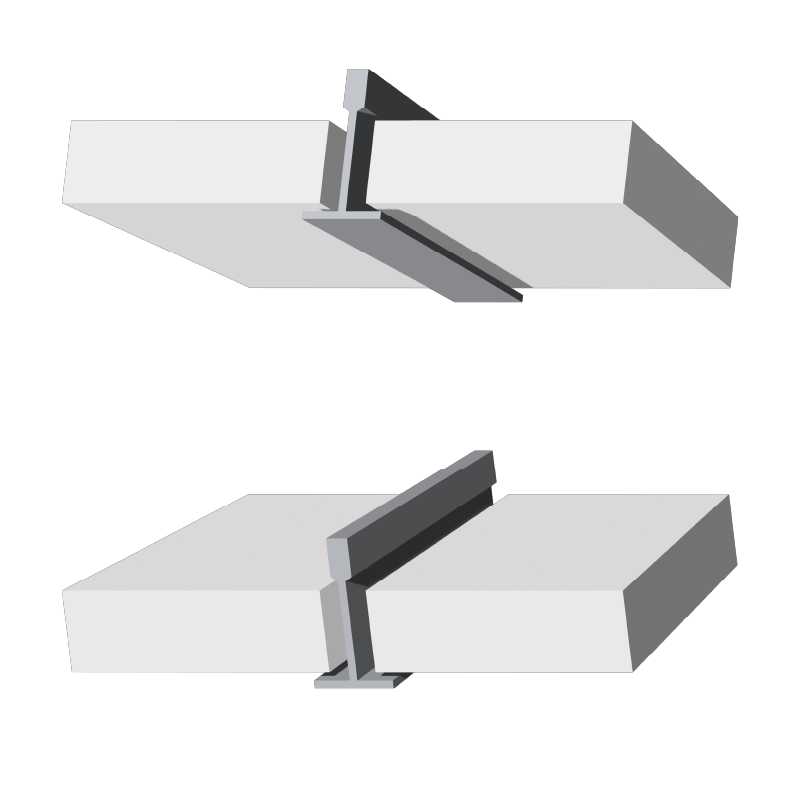

Trim Edge
Trim Edge

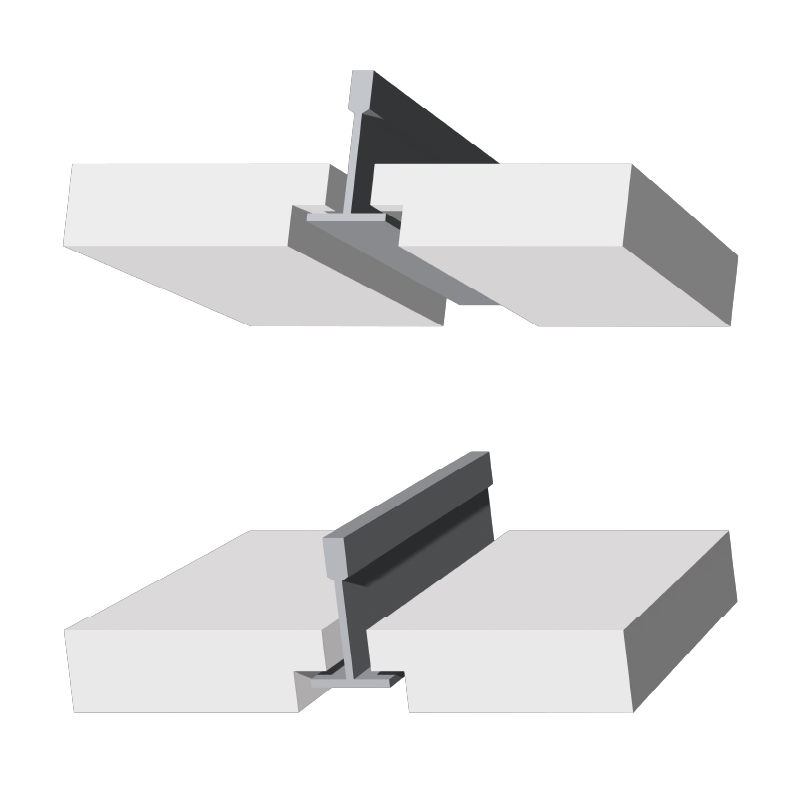

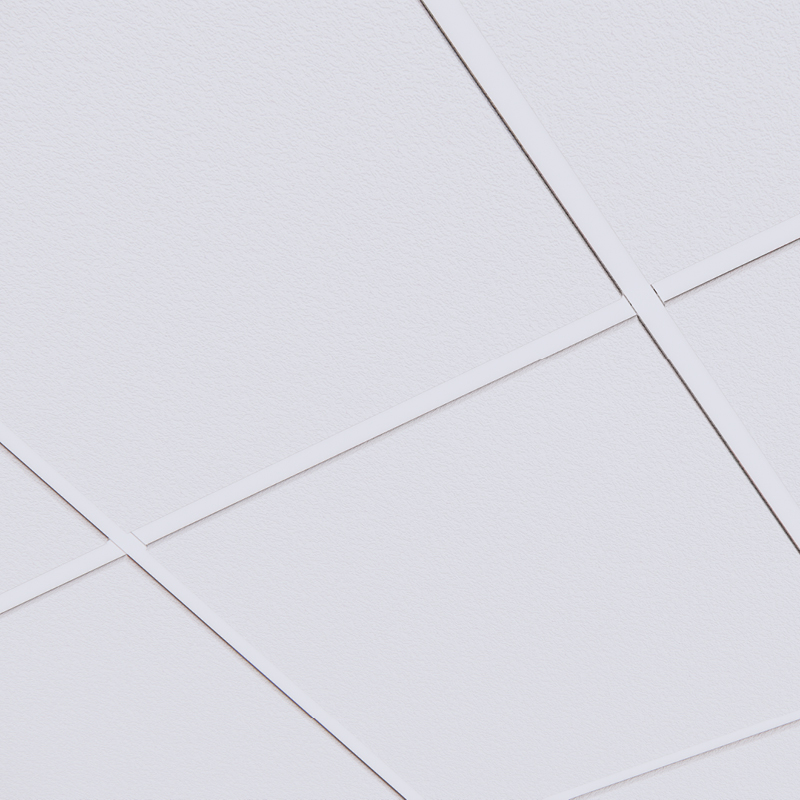

Reveal Edge
Reveal Edge




ThunderTile 24x48 (121x60.3cm) 48x24

Thickness Edge Panels per Box Surface Area Coverage
1" (30mm) Trim 4 32 sq-ft (2.97 sq-meters)
Trim Edge
Trim Edge




ThunderTile SoundTest

Absorption Coefficients
